Description

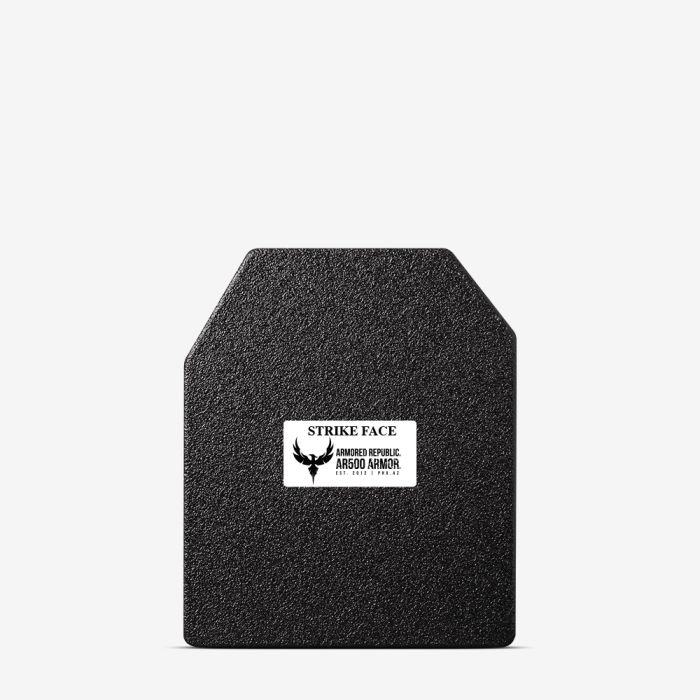

Essential protection ought to be affordable and reliable, which is why Armored Republic is proud to offer one of the most cost-effective plates on the market with our AR500 Armor® Heritage Plate: The plate material is a steel alloy blend, has our patented Advanced Shooters Cut shape, and is covered with an exclusive FragLock™ Base Coat.

Our AR500 Armor® Heritage armor plate, unlike ceramic or polyethylene alternatives, is capable of protecting against several direct hits while still being less bulky than competing materials. It also has been independently tested in accordance with NIJ 0101.06 threat levels through Oregon Ballistics (OBL), and H.P. White Laboratories. This means that its level 3 body armor protection is rated to stop 7.62×51 M80 NATO Ball (.308 Winchester) at a velocity of up to 2,780 FPS, and special threat tested to stop 5.56mm M855/SS109 (Green Tip) at a velocity of 2,780 FPS.

Knowledge Base Articles

• Body Armor 101
• Which Plate Carrier Should I Get?
• What is a Trauma Pad?

Frequently Asked Questions

• What does level 3 body armor protect against? The National Institute of Justice (NIJ) protection rating for level 3 body armor is 6x shots of 7.62x51mm @ 2,780 FPS from 51′ away. Some level III plates are considered special threat plates in that in addition to this they will address other common threats. For example, our level 3 Heritage Plate will stop 5.56×45 M855 “green tips” @ 2,780 FPS from a 16” barrel, while our P2 plates will stop 5.56×45 M193 Ball @ 3,200 FPS.
• What will IIIA body armor stop? IIIA body armor is rated to stop 6x hits from 125-grain .357 SIG FMJ flat-nose bullets with speeds up to 1,470 feet per second and 240-grain .44 Magnum Semi-Jacketed Hollow Point (SJHP) bullets with speeds up to 1,430 ft/s, along with all lesser handgun threats.
• Can civilians own level 3 body armor? Yes, except in New York and Connecticut. Both of these states restrict body armor ownership to law enforcement and active military only.

Material: AR500 steel alloy blend, with FragLock™ Coating

Protection: 7.62 mm FMJ, steel-jacketed bullets (U.S. Military designation M80) with a specified mass of 9.6 g (147gr) and a velocity of 2,780 ft/s (+/- 30 ft/s).

Capability: Edge-to-edge multi-hit protection

Form: Flat and Curved (base coat)

Dimensions:

• Weight: 8.5 lbs
• Thickness: 0.34″ thick
• Plate Carriers: Testudo, Valkyrie, & Invictus

Shelf life: 20 years

Manufactured: United States
